Thermal‑Management Materials for MOSFETs in Robot Joint Drives: confirm the actual gap between components and heat sink, permissible compression, component pressure‑bearing capacity and dispensing process prior to selecting thermal gels, thermal greases or thermal pads. For robot drive boards with height tolerances and irregular interfaces, TCMP‑series thermal gels are highly recommended. TCMP 3380 is designed for gap filling and thermal management of electronic components.
Thermal Interface Materials for Drive MOSFETs
Why Do MOSFET Hot‑Spots Frequently Occur in Robot Joints?
The smaller the joint volume, the closer the drive is to the motor. Heat generated by MOSFETs must travel a very short path: MOSFET → TIM → heat sink / joint metal housing. Air trapped within the TIM layer will cause rapid local temperature rise.

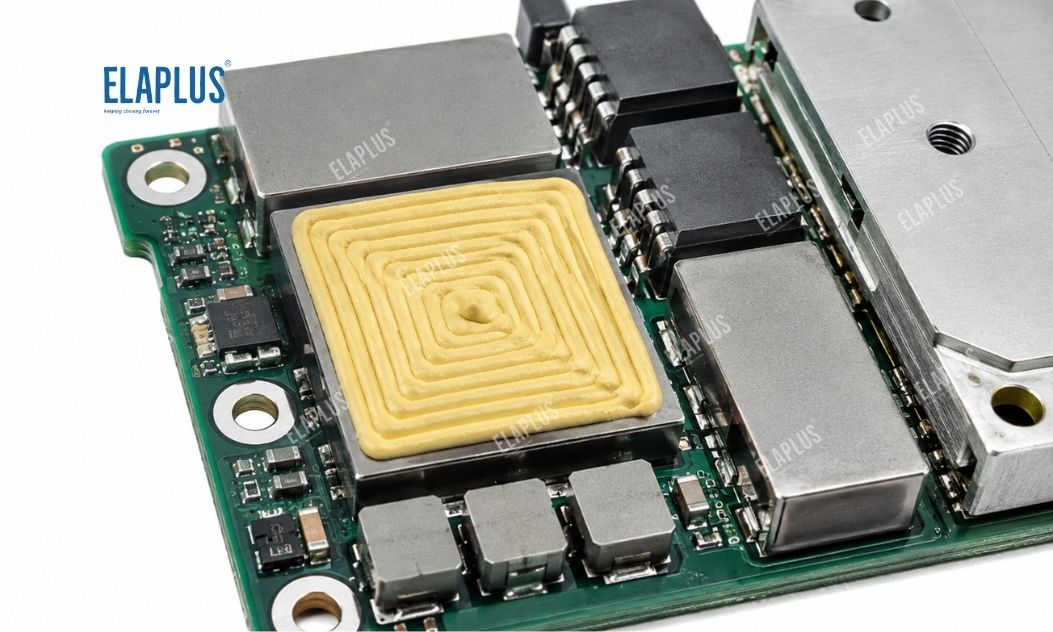

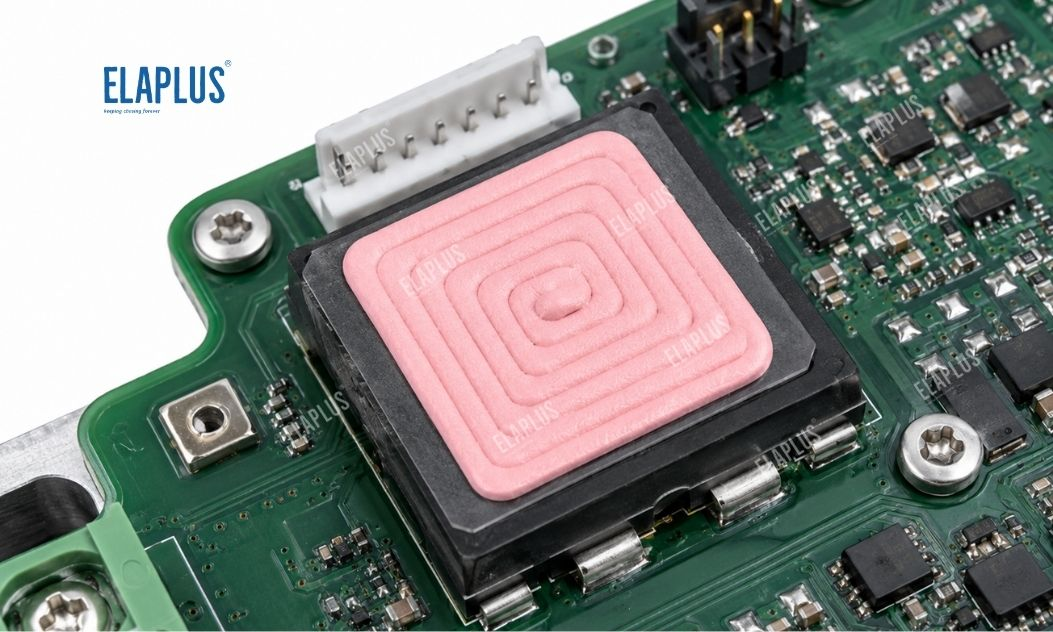

What Is the Value of Thermal Gel?
It does not dissipate heat by itself. It replaces air gaps with thermally conductive material. Especially when MOSFETs have inconsistent heights, thermal gel accommodates assembly tolerances effectively.
Why Thermal Conductivity Values such as 6 W or 8 W Are Not Everything?
Actual interfacial thermal resistance is affected by:
‑ bond‑line thickness
‑ contact area
‑ compression
‑ interfacial voids
‑ long‑term stability
A material with high thermal conductivity applied in a thick bond‑line may underperform a moderately conductive material with a thinner BLT.
Industry Pitfalls | Top 3 Common Mistakes in Thermal‑Material Procurement
- Only requesting thermal conductivity without providing actual gap dimension. Valid TIM recommendations cannot be made without gap data.
- Applying excessive thermal gel thickness for perceived safety. Excessive thickness increases thermal resistance along the heat path.
- Neglecting allowable compression pressure for MOSFET devices. Over‑compression of rigid materials introduces extra mechanical load on PCB and components.
Suitable Application Scenarios for TCMP Series

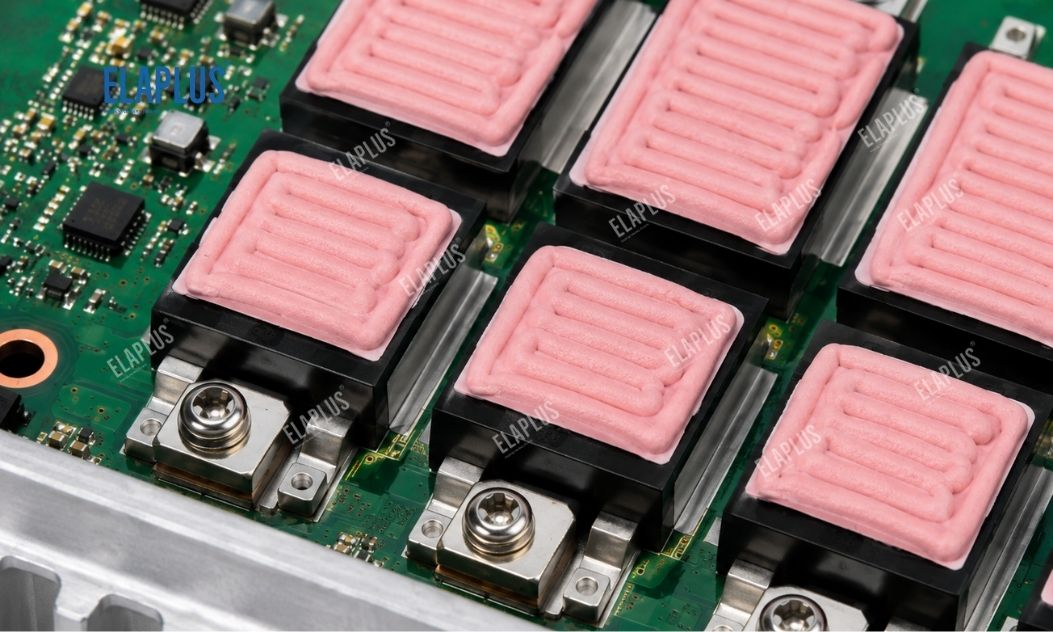

TCMP thermal gels are preferred where:
‑ height variation exists among MOSFET devices
‑ gap ranges from tenths of a millimeter to several millimeters
‑ automatic dispensing is required
‑ fixed‑thickness pads are not feasible
‑ low‑stress gap filling is demanded
If mating surfaces fit tightly with very thin BLT, re‑evaluate alternatives such as thermal grease.
FAQ on Thermal Gels for Robot MOSFETs
Can thermal gel hold the heat sink in place? Its primary function is thermal gap filling. It shall not be relied upon as the main structural fastener.
Is softer thermal gel always better? Not exactly. Balance anti‑flow property, processability and long‑term reliability.
Is thermal conductivity the most critical parameter? It is not the sole metric. System‑level actual thermal resistance matters most.
