Potting for EMI Filter Circuit Boards
I. Why EMI Filter PCBs Require Potting Protection
EMI filters are critical anti-interference components within power systems, commonly deployed in power modules, controllers, charging equipment, industrial electronics, inverters, energy storage units and communication devices. Without reliable potting encapsulation during continuous energized operation, filter PCBs are prone to the following failures:
1.Moisture ingress degrades insulation performance
Solder points, terminals, inductors, capacitors and PCB traces on EMI filter boards are highly sensitive to humidity. Prolonged moisture penetration can cause degraded insulation, electric leakage, component corrosion and even short circuits. Waterproof & moisture-resistant potting compound forms a protective film over all electronic parts, mitigating failure risks in hot-humid operating environments.
2.Vibration and shock loosen electronic components
Power equipment, industrial controllers and vehicle-mounted electronics are subject to constant vibration and mechanical impact. Tall components such as inductors and capacitors will suffer solder joint fatigue, displacement or poor electrical contact if not secured by potting resin. The encapsulant acts as a rigid fixture and shock buffer for all onboard components.
3.Thermal stress induced by temperature fluctuations
EMI filter PCBs undergo repeated thermal cycles of startup, full-load operation and shutdown. Hard, high-shrinkage potting compounds generate severe thermal stress on components and solder joints during temperature swings. In contrast, flexible polyurethane potting materials like PUR 1635 deliver low-stress protection ideal for delicate PCB assemblies.
4.Strict flame retardancy requirements for power products
As core parts of power and control systems, EMI filters are held to stringent product safety standards. Potting materials must offer both insulation and flame resistance. PUR 1635 features outstanding flame retardancy meeting UL94 V-0 rating, making it suitable for safety-critical applications including EMI filters, power filters and controller circuit boards.
II. Product Overview of PUR 1635
ELAPLUS PUR 1635 is a solvent-free two-component polyurethane potting compound developed by Elaplus. It cures at room temperature, with accelerated curing achievable via heating. The fully cured material exhibits pale yellow transparency, designed for two-component sealing, potting and flame-retardant protection across electrical & electronic applications.
This eco-friendly formulation contains no heavy metals, offering wide processing latitude and superior finished physical properties with robust adhesion to most common substrates. PUR 1635 enables deep-section curing with low exotherm and minimal shrinkage post-cure, plus excellent cured flexibility. It is the ideal potting solution for EMI filter PCBs, electronic module encapsulation, power filter potting and control board sealing.
III. Key Advantages of PUR 1635 for EMI Filter PCB Potting

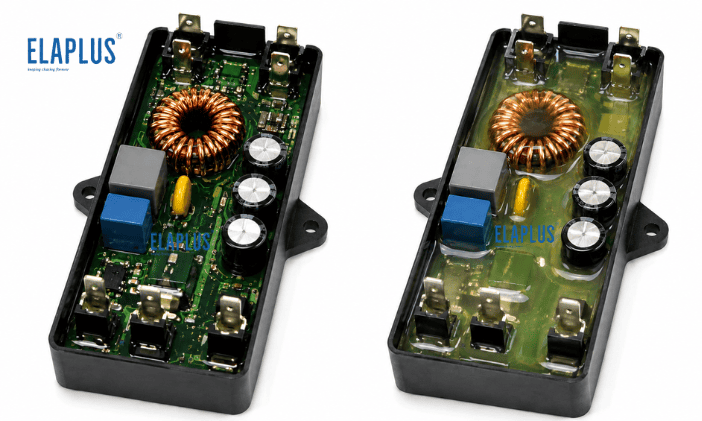

1.Pale yellow transparent matrix enables internal component inspection

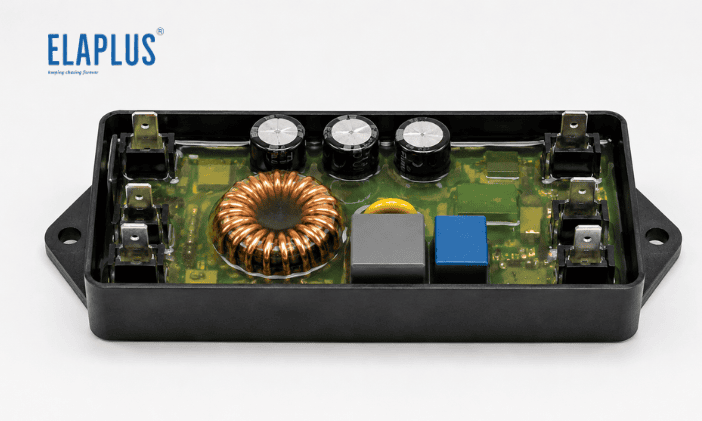

Once cured, PUR 1635 remains pale yellow and translucent. This unique property delivers significant practical benefits for EMI filter manufacturing: engineers can clearly identify internal component outlines, solder zones, terminal positions and full potting coverage after encapsulation, streamlining factory quality inspection and post-process verification. Compared with fully opaque potting resins, this translucent polyurethane variant is preferred for modules requiring visual quality checks.
2.Excellent flexibility minimizes thermal & mechanical stress on PCBs and components
Inductors, capacitors, terminals, PCBs and filter housings each feature distinct coefficients of thermal expansion. Rigid potting compounds create interfacial tension, solder joint stress or resin cracking during thermal cycling.
The highly flexible cured matrix of PUR 1635 absorbs mechanical and thermal stress while fully encapsulating components, making it perfect for vibration-resistant, low-stress PCB potting requirements.
3.Superior UL94 V-0 flame retardancy for enhanced safety
EMI filters, power filters and controller boards are power-associated assemblies subject to strict fire safety standards. PUR 1635 delivers top-tier flame retardancy certified to UL94 V-0, directly raising the overall safety rating of finished electronic modules. For power electronics, flame retardant potting material is a mandatory reliability design element rather than an optional add-on.
4.Stable electrical insulation safeguards filter circuitry
EMI filter PCBs feature zones operating at different voltage potentials, demanding consistent insulating performance from encapsulant. PUR 1635 provides reliable dielectric insulation, fully covering solder joints, terminals, PCB traces and electronic components to eliminate risks of leakage current, creepage discharge and short circuits in humid operating conditions.
5.Outstanding water & moisture resistance with ultra-low water absorption
Filter PCBs often operate in humid, thermally variable or dusty environments. PUR 1635 boasts superior waterproof and damp-proof performance paired with minimal water uptake, blocking vapor intrusion and extending the long-term service life of encapsulated electronic modules in harsh working conditions.
6.Deep-section curing with low exotherm and negligible shrinkage
EMI filter modules feature uneven internal heights and complex void geometries requiring complete resin penetration. High-shrinkage potting compounds commonly form voids, delamination or interfacial stress after curing.
PUR 1635 supports full deep-section filling, releases minimal heat during crosslinking and exhibits extremely low post-cure shrinkage, improving structural integrity and eliminating encapsulation defects.
7.Strong adhesion to both metal and plastic substrates
EMI filter assemblies incorporate a broad range of base materials: bare PCBs, copper terminals, plastic casings, metal housings, inductor magnetic cores and component shells. PUR 1635 forms durable adhesive bonds with nearly all common metals and engineering plastics, strengthening integration between the potting layer and substrates for long-lasting hermetic sealing.
IV. Core Benefits of PUR 1635 for EMI Filter PCB Potting
The value proposition of PUR 1635 for filter board encapsulation can be summarized into five core strengths:
■ Insulation Protection
The resin fully encapsulates PCBs, solder joints, terminals and electronic components to boost electrical safety of finished circuit boards.
■ Water & Moisture Barrier
Prevents corrosion and premature failure caused by humidity, condensation and airborne dust ingress.
■ Flame-Retardant Safety
UL94 V-0 certified flame resistance for power electronics and filter modules with strict safety requirements.
■ Low-Stress Encapsulation
Flexible polyurethane matrix eliminates thermal and mechanical stress damage to sensitive components and solder joints, a common flaw of rigid epoxy potting materials.
■Transparent Visual Inspection
Pale yellow translucent cured state allows full visibility of internal components and potting coverage, simplifying production quality control.
V. Typical Application Scenarios
ELAPLUS PUR 1635 is suitable for potting and sealing across a wide range of electrical & electronic modules, especially assemblies requiring flame retardancy, insulation, waterproofing, damp-proofing and flexible encapsulation:
■ Power filter PCB potting
■ Controller circuit board encapsulation
■ Power module potting
■ Industrial electronic module sealing
■ Communication equipment circuit board protection
■ Sensor motherboard encapsulation
■ Potting for inductors, capacitors and terminal blocks
VI. Recommended Potting Process Guidelines for EMI Filter PCBs
■ Pre-Potting Surface Cleaning
Remove all dust, oil stains, moisture and surface contaminants from PCBs, housings, terminals, inductors, capacitors and solder joints prior to encapsulation. Clean substrate surfaces maximize resin adhesion and long-term sealing reliability.
■ Complete Homogenization of A & B Components
As a two-component polyurethane system, PUR 1635 requires precise gravimetric dosing of Part A and Part B per specified mixing ratio, followed by thorough uniform stirring. Scrape the bottom and side walls of mixing containers during blending to avoid incomplete mixing which impairs full curing.
■ Air Bubble Elimination
For EMI filter boards with high electrical reliability requirements, vacuum degassing is recommended post-mixing. Minimizing trapped air bubbles stabilizes dielectric performance and delivers consistent cosmetic results for finished potting layers.
■ Slow, Controlled Pouring onto PCB Assemblies
Pour resin gradually from the lowest point or edge of the housing to enable natural flow and full filling of component gaps. Pay special attention to full coverage of hard-to-reach areas: inductor bases, capacitor peripheries, terminal roots, housing corners and dense solder joint clusters.
■ Room-Temperature or Heat-Accelerated Curing
PUR 1635 cures naturally at ambient temperature, or can be heat-cured to shorten cycle times. Manufacturers may select the optimal curing method based on production throughput, potting depth, module dimensions and efficiency targets. Automated dispensing equipment paired with heated curing ovens is recommended for high-volume mass production.
VII. Performance Differences Between PUR 1635 Flexible Polyurethane and Rigid Epoxy Potting Compounds
Epoxy and polyurethane potting resins are both widely used in electronic encapsulation, yet they are not direct interchangeable alternatives – each serves distinct product structures and reliability criteria.
Epoxy potting compounds deliver high hardness and superior mechanical structural support, ideal for applications prioritizing structural strength and heat resistance. Polyurethane potting resins feature superior flexibility and low stress transfer, making them better suited for protecting delicate electronic components, solder joints and plastic housings.
For EMI filter PCBs with core demands of waterproofing, flame-retardant insulation, flexible low-stress encapsulation and post-potting internal visibility, translucent polyurethane potting resin ELAPLUS PUR 1635 delivers unmatched compatibility and performance advantages.
VIII. Why Choose Elaplus PUR 1635?
Elaplus Functional Materials (Shanghai) Co., Ltd. specializes in R&D and customized formulation of electronic adhesives, potting compounds, sealants, thermal interface materials, conformal coatings and structural bonding agents. Our product portfolio serves automotive electronics, industrial control, communication hardware, new energy systems, power modules, sensors, motors and optoelectronic lighting industries.
Beyond supplying PUR 1635 polyurethane potting compound for EMI filter PCB encapsulation, Elaplus provides full technical support including material selection and process optimization tailored to customers’ unique product designs, potting depths, flame retardancy grades, production curing cycles, viscosity specifications, transparency requirements and reliability testing standards.
For manufacturers sourcing EMI filter potting adhesive, general PCB potting resin, polyurethane encapsulant, waterproof flame-retardant potting compound, insulating potting material or power filter potting solutions, ELAPLUS PUR 1635 balances outstanding processability and long-term operational reliability as an all-in-one solution.
