UV MA 1013 Solder Masking Adhesive for FPC, Connector Fixing & Local Insulation Protection

Solder joints are typically the weakest point affecting product reliability in flexible printed circuits (FPCs), connectors, precision electronic modules, automotive electronics, consumer electronics and sensor assemblies.

Long-term exposure to vibration, bending, moisture, contaminants and temperature fluctuations may cause loose connections, cracks, corrosion or insulation failure at solder joints. Especially at the joints between FPCs and connectors, solder points have to withstand mechanical stress while maintaining stable electrical performance. Therefore, dedicated solder masking adhesive is required for local reinforcement and protection.

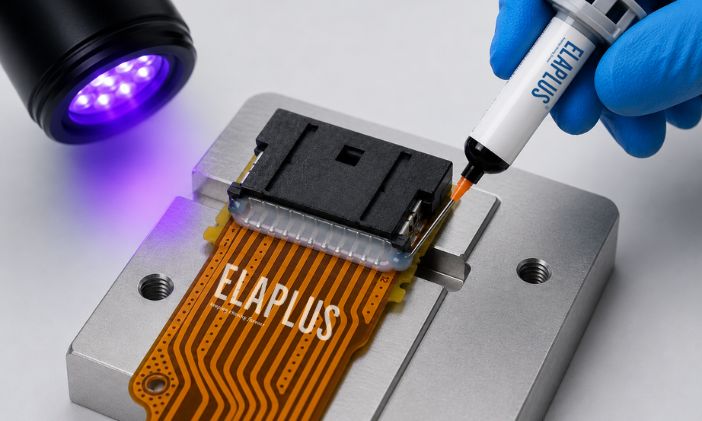

ELAPLUS (Shanghai) Functional Materials launches UV MA 1013 UV-curable electronic protective adhesive. It is designed for FPC bonding, connector fixation, solder joint coating and local insulation protection, effectively improving assembly stability and long-term reliability of electronic components.

1. Why Do FPC Solder Joints Need Protection?

Featuring ultra-thin profile, flexibility and dense circuitry, FPCs are widely applied in automotive electronics, consumer electronics, medical electronics, sensors, camera modules, display modules and precision connectors.

Nevertheless, solder joints on FPC connections are small in size, closely spaced and subject to concentrated stress. Without proper protection, the following issues may occur:

■ Solder joint cracking under vibration or bending

■ Inadequate connector fixation leading to unstable contact

■ Moisture ingress causing solder joint corrosion or degraded insulation performance

■ Local stress concentration resulting in FPC circuit damage

■ Solder joint scratching or contamination during assembly

■ Signal abnormality or product failure after long-term service

Accordingly, FPC solder masking adhesive is not merely a surface coating material, but a critical process material to enhance the reliability of electronic assemblies.

2. Introduction to UV MA 1013

UV MA 1013 is a one-component UV-curable electronic protective adhesive based on polyurethane-modified acrylate. It is ideal for small-area dispensing, solder joint coating, connector fixing and local insulation protection.

This product delivers fast UV curing speed, excellent dispensability and good coverage over solder joints, plus strong adhesion to FPC and other substrates. It perfectly fits manufacturing scenarios requiring rapid curing, precision dispensing and mass production.

3. Core Advantages of UV MA 1013

3.1 UV Curing for Higher Production Efficiency

Adopting UV curing technology, the product matches the high-speed assembly rhythm of electronic manufacturing. Compared with conventional slow room-temperature curing adhesives, it greatly shortens curing time and boosts production line efficiency.

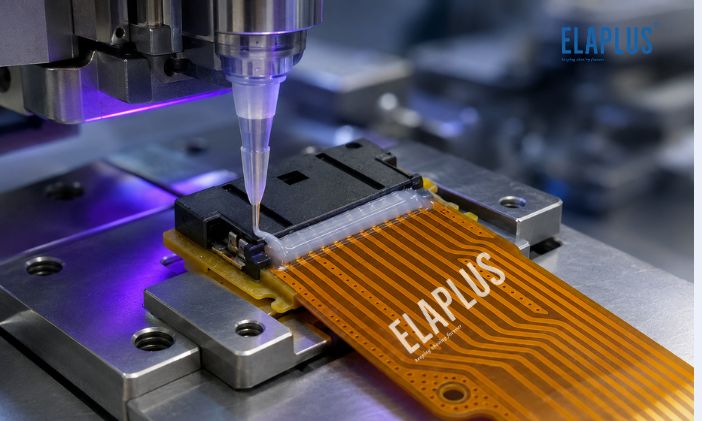

It is fully compatible with automatic dispensing and UV curing equipment for processes including FPC solder protection, connector fixation and encapsulation of miniature electronic components.

3.2 Thixotropic Property for Ideal Solder Coverage

The semi-thixotropic formula enables the adhesive to fully cover solder joints after dispensing without excessive flow to unwanted areas, forming a stable protective layer. It works well for FPC solder joints, connector terminals, partial bonding and insulation protection.

3.3 Excellent Adhesion to FPC, PI, FR4 and Other Substrates

FPC and electronic substrates impose strict requirements on adhesive compatibility. UV MA 1013 offers superior adhesion to FR4, PI, PC, FPC and other common materials, suitable for local fixation and protection of various electronic assemblies. It is a preferred solution for FPC connector solders, FPC reinforcement and electronic material bonding.

3.4 Balanced Insulation & Environmental Resistance

Apart from fixation, the adhesive provides reliable local insulation and environmental protection. It features outstanding electrical insulation, moisture resistance, chemical resistance and thermal shock resistance, ensuring stable performance of electronic components in harsh working conditions.

4. Main Applications

■ Solder joint protection for FPCs

■ FPC material bonding

■ Connector fixation

■ Insulation protection for connector solder joints

■ Encapsulation of discrete electronic components

■ FPC reinforcement

■ Fixation of miniature electronic assemblies

■ Local protection for automotive electronics

■ Solder protection for sensor modules

■ Precision dispensing and fixation for high-end electronic products

If you are looking for solder masking adhesive, UV solder protection adhesive, FPC protective adhesive, FPC bonding adhesive, connector fixing adhesive or electronic component fixing adhesive, UV MA 1013 is an optimal choice for sample testing and process verification.

5. Why Choose ELAPLUS UV MA 1013?

Solder protection and FPC bonding are sophisticated processes in precision electronics manufacturing. Customers have diverse requirements in terms of FPC material, solder geometry, connector structure, dispensing equipment, UV light source and reliability standards.

ELAPLUS provides professional application guidance and technical support tailored to your actual products:

■ Material selection for FPC solder masking adhesive

■ Dispensing solutions for connector fixation

■ UV curing process recommendations

■ Guidance on dispensing volume and glue pattern

■ Substrate bonding test suggestions

■ Support for sample testing and reliability verification

■ Process optimization to match your production cycle

More than just a standalone UV adhesive, UV MA 1013 supports comprehensive application verification in combination with product structure, dispensing equipment and reliability requirements.

6. Frequently Asked Questions

Q1: Is UV MA 1013 applicable to FPC solder protection?

A1: Yes. It is designed for FPC bonding, connector fixation and insulation protection, and can be used for FPC solder coating and local shielding.

Q2: Is it suitable for connector fixation?

A2: Definitely. It secures connectors and coats solder joints with insulation protection, improving mechanical stability and environmental resistance of connection areas.

Q3: Is UV MA 1013 transparent?

A3: It is translucent. The appearance allows visual inspection of solder joints and coating effect, which is ideal for electronic protection applications.

Q4: What are the curing requirements?

A4: The curing result is affected by UV lamp intensity, light distance, exposure time, glue thickness and substrate light transmittance. We recommend conducting sample tests based on your on-site equipment. Our team can provide professional process guidance.

Q5: Can I get samples and PDS documents?

A5: Yes. Please contact ELAPLUS to obtain product samples, Product Data Sheets (PDS) and application suggestions.

The reliability of FPC solder joints, connectors and discrete electronic components determines the overall performance of end products under vibration, humidity, thermal cycling and long-term operation.

ELAPLUS UV MA 1013 UV-curable electronic protective adhesive is dedicated to FPC solder protection, connector fixation, electronic material bonding and local insulation. It helps customers improve assembly efficiency and long-term product reliability.
